Product Details:
|
| Name: | EDM Copper Threading Electodes | Items No.: | M6 |
|---|---|---|---|
| Material: | Copper | Total Length: | 70mm |
| Tap Length: | 55mm | Under Quota Dia.: | 4.5mm |
| Thin Pitch: | 0.75mm | Color: | Red |
| High Light: | copper electrode material,copper tungsten electrodes,M6 EDM Threading Electrodes |
||

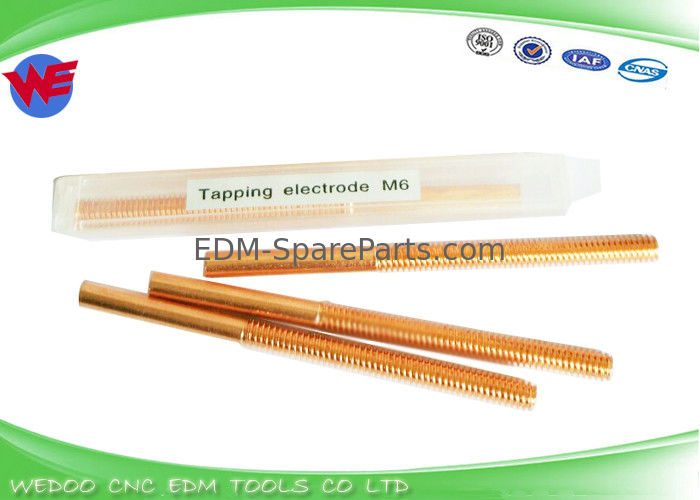

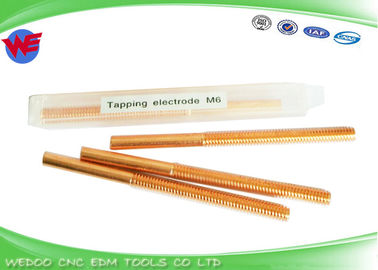

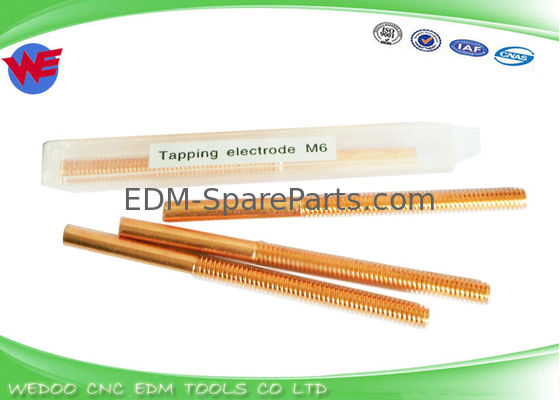

M6 EDM Threading Electrode Tappping Without Hole For CNC EDM Machine
Total length: 70mm ;Tap length:55mm
Difference length Tapping Electrodes is available, nomarl length is 80x50mm, 70x55mm ,
75x50mm,55x35mm.
International standard spec. Fine processing , high quality Tapping Electrode , be well received by oversea customers .
EDM Copper Electrode Tapping for EDM Spark Machkine and EDM Drilling Machine is available !
Large quantity in stock ,fast delivery !
Materials details
CuW50 and CuW55 have the lowest Tungsten contents. They are both good switching and contact materials for oil filled devices. CuW55 is also used for arcing contacts in oil circuit breakers and arcing edges of selectors and switchblades in transformer tap changers.
CuW65 and CuW70 are used as contact materials in severe arcing applications including gas, oil and some air circuit breakers. They are also used for arcing edges on selectors and reversing switch blades.
CuW75 and CuW80 are used as contact materials under extreme arcing conditions. Applications include arcing contacts in gas and oil circuit breakers, contactors and transformer tap changers, arcing plates and arc runners in power switching equipment.
CuW85 and CuW90 have the highest Tungsten content. They are used as contact materials where resistance to contact welding, sticking and arc erosion are critical. They also provide satisfactory heat and current interruption capabilities. Typical applications are power vacuum switches and high power spark gap electrodes, etc

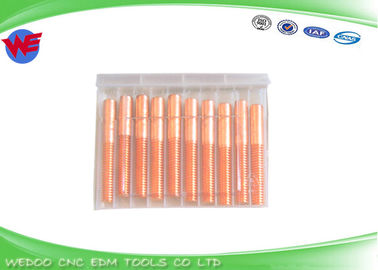

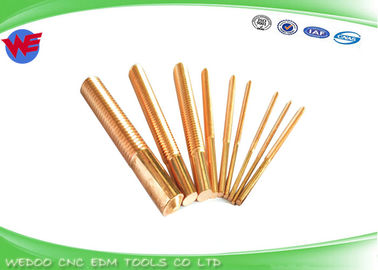

Tapping Electrodes M2-M20
* Copper tapper without hole
* Copper Tapper with hole
* Tungsten Copper Tapper without hole
* Tungsten Copper Tapper with hole
For special size ,customized items is available to made!
| EDM Copper Tapping Electrodes | CU | |||
| Tapping | Total L(mm) |
Tap L (mm) |
Thin pitch | Under quta D |
| M2x0.4 | 50 | 20 | ||
| M2.5x0.45 | 50 | 20 | ||
| M3x0.5 | 80 | 50 | 2.3 | |
| M4x0.7 | 80 | 50 | 2.9 | |
| M5x0.8 | 80 | 50 | 0.5 | 3.8 |
| M6x1.0 | 80 | 50 | 0.75 | 4.5 |
| M8x1.25 | 80 | 50 | 0.75-1 | 6 |
| M10x1.5 | 80 | 50 | 1 | 7.8 |
| M12x1.75 | 80 | 50 | 1-1.25-1.5 | 9.4 |
| M14x2 | 80 | 50 | 1-1.25-1.5 | 11.1 |
| M16x2 | 80 | 50 | 1.5 | 13.1 |
| M18x2.5 | 80 | 50 | 14.4 | |
If you need Tapping Electrode with Tungsten copper ( CuW ) ,or Copper (Cu) , without hole / with hole , in order to choice
the right one products, Please keep in touch with us about your detail demands.
Our main products :
* EDM Spare parts : Wire Guide ,nozzles, roller ,power feed contact ,belt ,guide base , discharge cable…
* EDM Consumables: Brass wire , moly wire , JR3A ,Ion exchange resin ,kc-12
* EDM Water Filters
* EDM Drilling Parts : ceramic pipe guide ,ruby pipe guide , rubber seal , drill chuck
* EDM Copper / Brass tube : sighle hole ,double hole , multi hole electrode tube
* EDM Copper tappers
* High speed wire cutting EDM Parts :guide pully , pully assembly , bearing ..
* Jig tools , jig holders
Feel free to contact us any time ,if you are interested our products!
