Fine Processing EDM Threading Electrodes M5 Copper Tapper For EDM Spark Machine

Fine Processing EDM Threading Electrodes M5 Copper Tapper For EDM Spark Machine

    • Fine Processing EDM Threading Electrodes M5 Copper Tapper For EDM Spark Machine
    • Fine Processing EDM Threading Electrodes M5 Copper Tapper For EDM Spark Machine
  • Fine Processing EDM Threading Electrodes M5 Copper Tapper For EDM Spark Machine

    Product Details:

    Place of Origin: China
    Brand Name: WEDOO
    Model Number: M5

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: Negotiation
    Packaging Details: Packing in box
    Delivery Time: within 1-5 days after payment
    Payment Terms: TT, Western Union, Paypal
    Supply Ability: 50000 pcs per month
    Contact Now
    Detailed Product Description
    Name: EDM Copper Threading Electodes Items No.: M5
    Material: Copper Total Length: 80mm
    Tap Length: 50mm Under Quota Dia.: 3.8mm
    Thin PitchDimensions: Customer's Demands Color: Red



    M5 EDM Threading Electrodes  For CNC EDM Machine



    Total length: 80mm ;Tap length:50mm

    Difference length Tapping Electrodes is available, nomarl length is 80x50mm, 70x55mm ,

    75x50mm,55x35mm.



    Threading electrode range : M2 - M22


    International standard spec. Fine processing , high quality Tapping Electrode , be well received by oversea customers .



    EDM Copper Electrode Tapping for EDM electronics,aerospace,machinery.

    Large quantity in stock ,fast delivery !





    Tapping Electrodes M2-M20



    * Copper tapper without hole

    * Copper Tapper with hole

    * Tungsten Copper Tapper without hole

    * Tungsten Copper Tapper with hole



    For special size ,customized items is available to made!



    Shipping time of copper tungsten thread electrode : Within 3-30 days
    ( 3 days for stock goods,5-10 days for custom make,10-30 days for mass production )

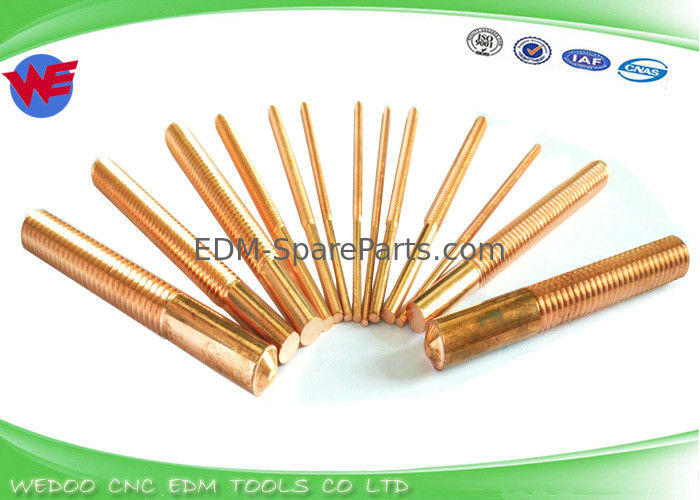

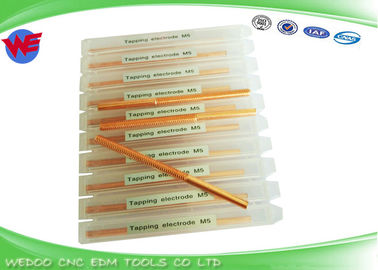

    Pictures of our EDM copper thread electrode

    Fine Processing EDM Threading Electrodes M5 Copper Tapper For EDM Spark MachineFine Processing EDM Threading Electrodes M5 Copper Tapper For EDM Spark Machine



    Properties:

    EDM Copper Tapping Electrodes   CU
    Tapping Total
    L(mm)
    Tap L
    (mm)
    Thin pitch Under quta D
    M2x0.4 50 20
    M2.5x0.45 50 20
    M3x0.5 80 50   2.3
    M4x0.7 80 50   2.9
    M5x0.8 80 50 0.5 3.8
    M6x1.0 80 50 0.75 4.5
    M8x1.25 80 50 0.75-1 6
    M10x1.5 80 50 1 7.8
    M12x1.75 80 50 1-1.25-1.5 9.4
    M14x2 80 50 1-1.25-1.5 11.1
    M16x2 80 50 1.5 13.1
    M18x2.5 80 50   14.4





    How to order products from us ?



    1. First send inquiry about which products you want .


    2. Then confirm price, delivery times ,and payment terms ,MOQ.


    3. If you are satisfy our prices and service, send your PO to us . For first time , trial order or samples order is available to test the quality in advance.


    4. We will send you Proforma Invoice or Commercial Invoice to confirm again.


    5. Payment , you can make it by TT, Paypal, Western Union ,Cash.


    6. Delivery , we will arrange the shipment by Express or by air ,by sea. Which ways base on the quantity of your ordered.


    7. Feedback ,once you received the packing, welcome to feedback your idea to us, about packing, quality or anything more you want to inform us .


    8. After-sales service.





    For more informations ,please contact us !
