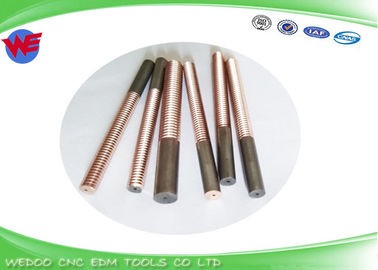

M8 Tungsten Copper EDM Drill Electrodes , Rod Shape Copper Electrode For EDM

M8 Tungsten Copper EDM Drill Electrodes , Rod Shape Copper Electrode For EDM

    • M8 Tungsten Copper EDM Drill Electrodes , Rod Shape Copper Electrode For EDM
    • M8 Tungsten Copper EDM Drill Electrodes , Rod Shape Copper Electrode For EDM
    • M8 Tungsten Copper EDM Drill Electrodes , Rod Shape Copper Electrode For EDM
  • M8 Tungsten Copper EDM Drill Electrodes , Rod Shape Copper Electrode For EDM

    Product Details:

    Place of Origin: China
    Brand Name: WEDOO
    Model Number: M8

    Payment & Shipping Terms:

    Minimum Order Quantity: 20 pcs
    Price: Negotiation
    Packaging Details: Packing in box
    Delivery Time: within 1-5 days after payment
    Payment Terms: TT, Western Union, Paypal
    Supply Ability: 50000 pcs per month
    Contact Now
    Detailed Product Description
    Name: Tungsten Copper EDM Threading Tapper Items No.: M8
    Material: Tungsten Copper Total Length: 60 Mm
    Tap Length: 40mm Under Quota Dia.: 6mm
    Thin Pitch: 0.75-1mm Shape: Rod

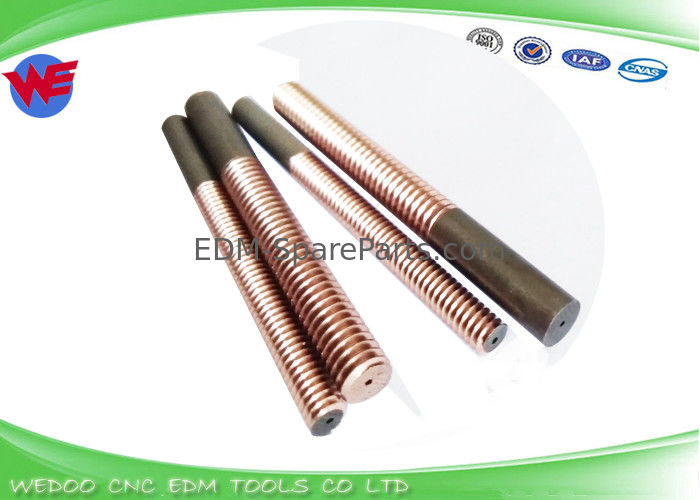

    M8 Tungsten Copper EDM Threading Electodes With Hole  For CNC EDM Machine



    Total length: 60mm ;Tap length:40mm

    Difference length Tapping Electrodes is available to customized .



    With Hole Threading electrode range :  M4; M5; M6; M8; M10;


    International standard spec. Fine processing , high quality Tapping Electrode , be well received by oversea customers .



    EDM Copper Electrode Tapping for EDM Spark Machkine and EDM Drilling Machine is available !

    Large quantity in stock ,fast delivery !



    Products show:

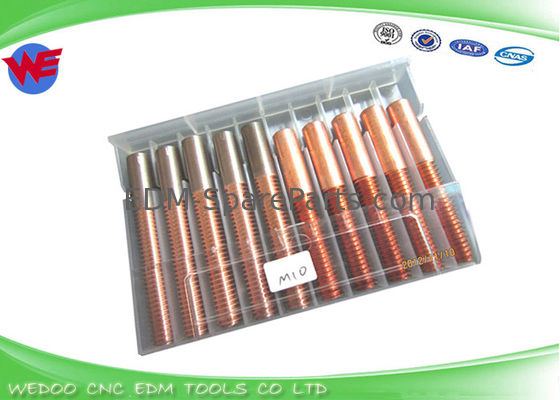

    M8 Tungsten Copper EDM Drill Electrodes , Rod Shape Copper Electrode For EDM





    Tapping Electrodes M2-M20



    * Copper tapper without hole

    * Copper Tapper with hole

    * Tungsten Copper Tapper without hole

    * Tungsten Copper Tapper with hole



    For special size ,customized items is available to made!





    Properties of Tungsten Copper EDM Threading Electrodes:



    Tapping Total
    L(mm)
    Tap L
    (mm)
    Thin pitch Under quta D
    M4x0.7 68 48   2.9
    M5x0.8 68 48 0.5 3.8
    M6x1.0 68 48 0.75 4.5
    M8x1.25 68 48 0.75-1 6
    M10x1.5 68 48 1 7.8





    Materials details



    CuW50 and CuW55 have the lowest Tungsten contents. They are both good switching and contact materials for oil filled devices. CuW55 is also used for arcing contacts in oil circuit breakers and arcing edges of selectors and switchblades in transformer tap changers.


    CuW65 and CuW70 are used as contact materials in severe arcing applications including gas, oil and some air circuit breakers. They are also used for arcing edges on selectors and reversing switch blades.


    CuW75 and CuW80 are used as contact materials under extreme arcing conditions. Applications include arcing contacts in gas and oil circuit breakers, contactors and transformer tap changers, arcing plates and arc runners in power switching equipment.

    CuW85 and CuW90 have the highest Tungsten content. They are used as contact materials where resistance to contact welding, sticking and arc erosion are critical. They also provide satisfactory heat and current interruption capabilities. Typical applications are power vacuum switches and high power spark gap electrodes, etc



    If you need Tapping Electrode with Tungsten copper ( CuW ) ,or Copper (Cu) , without hole / with hole , in order to choice

    the right one products, Please keep in touch with us about your detail demands.





    We are Think what you are desire and worries!


    Buyer: The products made in China is poor quality , it is waste money to buy products .

    Suplier: Sorry to say your idea was wrong ! It is new China ,Whether it's equipment and technology, it's advanced enough!



    Buyer: I am user ,only need a small quantity of EDM Parts, it is not profitable.
    Supplier: In fact , if you buying big valume and heavy products ( EDM Filter ,Brass wire) ,it is really not worth.But for small EDM Parts such as wire guide , nozzle, power feed contact, rollers, pipe guide, import from us ,you will save much money .Payment by Paypal it is so easy. And shipping cost is also not expensive.



    Buyer: It is too cheap of products make in China, I am afraid the quality is not good.
    Supplier: First ,all our products have guaranty .And trial order is available to test quality in advance.



    Buyer: Once I made payment ,and supplier refused to shipment any goods .
    Supplier: Without trust, business will be stop and no moving . There are few cheater in the world, but most person is nice ,friendly.What's more ,we are not do business only one days ,a good reputation is so important for us , we are not so stupid to anything which no any helpfull for our business .


    Buyer: We need a vast quantity of products ,can we to be your agent in my countries?
    Supplier: Sure, If your quanity is reached our standard ,we are happy to cooperate with you as our agent! We will try our best to support you!
