Custom Length EDM Threading Electrodes M6 Tungsten Copper With 1 Mm Dia Hole

Custom Length EDM Threading Electrodes M6 Tungsten Copper With 1 Mm Dia Hole

    • Custom Length EDM Threading Electrodes M6 Tungsten Copper With 1 Mm Dia Hole
    • Custom Length EDM Threading Electrodes M6 Tungsten Copper With 1 Mm Dia Hole
  • Custom Length EDM Threading Electrodes M6 Tungsten Copper With 1 Mm Dia Hole

    Product Details:

    Place of Origin: China
    Brand Name: WEDOO
    Model Number: M8

    Payment & Shipping Terms:

    Minimum Order Quantity: 20 pcs
    Price: Negotiation
    Packaging Details: Packing in box
    Delivery Time: within 1-5 days after payment
    Payment Terms: TT, Western Union, Paypal
    Supply Ability: 50000 pcs per month
    Contact Now
    Detailed Product Description
    Name: Tungsten Copper EDM Threading Electrode Material: Tungsten Copper
    Total Length: 60 Mm Tap Length: 40mm
    Under Quota Dia.: 4.5mm Thin Pitch: 0.75mm
    Shape: Rod



    M6 Tungsten Copper EDM Threading Electodes With Hole



    Total length: 60mm ;Tap length:40mm

    Dia of hole : 1mm

    Difference length Tapping Electrodes is available to customized .



    With Hole Threading electrode range :  M4; M5; M6; M8; M10;


    International standard spec. Fine processing , high quality Tapping Electrode , be well received by oversea customers .



    EDM Copper Electrode Tapping for EDM Spark Machkine and EDM Drilling Machine is available !

    Large quantity in stock ,fast delivery !

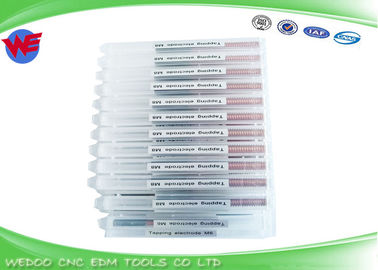

    Products show:

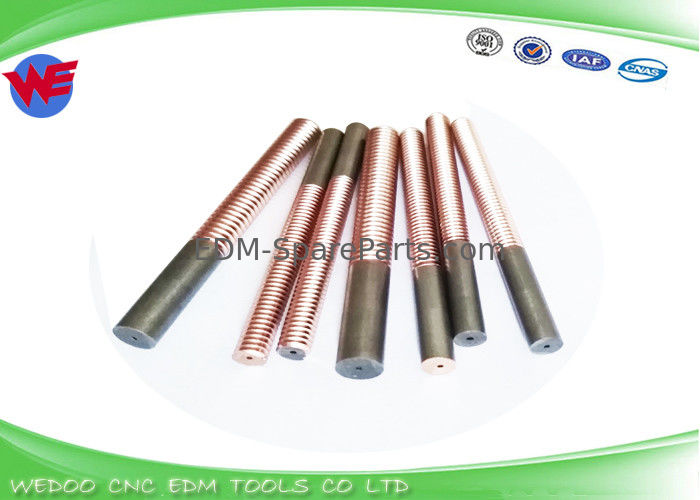

    Custom Length EDM Threading Electrodes M6 Tungsten Copper With 1 Mm Dia Hole





    Tapping Electrodes M2-M20



    * Copper tapper without hole

    * Copper Tapper with hole

    * Tungsten Copper Tapper without hole

    * Tungsten Copper Tapper with hole



    For special size ,customized items is available to made!





    Properties of Tungsten Copper EDM Threading Electrodes:



    Tapping Total
    L(mm)
    Tap L
    (mm)
    Thin pitch Under quta D
    M4x0.7 68 48   2.9
    M5x0.8 68 48 0.5 3.8
    M6x1.0 68 48 0.75 4.5
    M8x1.25 68 48 0.75-1 6
    M10x1.5 68 48 1 7.8





    Materials details




    CuW75 and CuW80 are used as contact materials under extreme arcing conditions. Applications include arcing contacts in gas and oil circuit breakers, contactors and transformer tap changers, arcing plates and arc runners in power switching equipment.

    CuW85 and CuW90 have the highest Tungsten content. They are used as contact materials where resistance to contact welding, sticking and arc erosion are critical. They also provide satisfactory heat and current interruption capabilities. Typical applications are power vacuum switches and high power spark gap electrodes, etc





    If you need Tapping Electrode with Tungsten copper ( CuW ) ,or Copper (Cu) , without hole / with hole , in order to choice

    the right one products, Please keep in touch with us about your detail demands.





    Our main products :



    * EDM Spare parts : Wire Guide ,nozzles, roller ,power feed contact ,belt ,guide base , discharge cable…



    * EDM Consumables: Brass wire , moly wire , JR3A ,Ion exchange resin ,kc-12



    * EDM Water Filters



    * EDM Drilling Parts : ceramic pipe guide ,ruby pipe guide , rubber seal , drill chuck



    * EDM Copper / Brass tube : sighle hole ,double hole , multi hole electrode tube



    * EDM Copper tappers



    * High speed wire cutting EDM Parts :guide pully , pully assembly , bearing ....





    How to shipping the packages?



    NO. Ways fo shipment Feature Delivery time Our suggest
    1 Express (FedEx,DHL,TNT , EMS etc.) Expensive, but fast,
    delivery to door
    3-10 days small package
    0- 100kg
    2 Shipping by Sea Low cost ,take a long time,
    delivery to sea port.
    more than 15 days
    Base on the distance
    60kg-200kg
    3 Shipping by Air Mid-priced,fast ,
    delivery to air port
    5-10 days More than
    100kg
    4 EXW terms
    ( Arrange the shipment
    by yourself)
    Pick up the material from our
    office by yourself agency
    It depends It depens



    We are your reliable supplier ,Just contact with us now!
