Product Details:
|
| Name: | Makino EDM Split Rond Guide | Items No.: | N101A |
|---|---|---|---|
| Material: | Diamond | OEM Code: | 20EC080A406 20EC080A407 20EC080A408 |
| Model: | W Serie SP43,64 | Position: | Upper And Lower |
| Size: | 0.205mm, 0.255mm, 0.305mm | Color: | White |
| High Light: | power feed contact,water nozzle |
||
Upper and Lower EDM Wire Guide
Size: 0.205mm, 0.255mm, 0.305mm
Original code: 20EC080A406 20EC080A407 20EC080A408
For model: Makino W serie SP43,64
Details:
| Item No. | OEM Code | Size (mm) | Application (details) |
| N101A | 20EC080A406 20EC080A407 20EC080A408 |
0.205 0.255 0.305 |
Upper/Lower Wire guide W serie SP43,64 |
| N102A | 6EC80B405 | Wire Guide Hodler ( Press guide dies) W serie SP43,64 |
|
| N113A | 20EC390A401-Z1 20EC390A403-Z1 |
0.205 0.255 |
Split Rond Guide W serie SP43,64 |

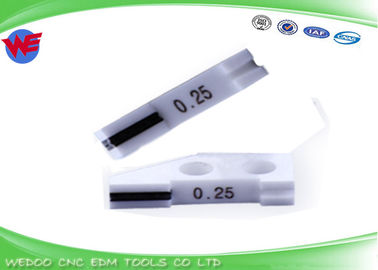

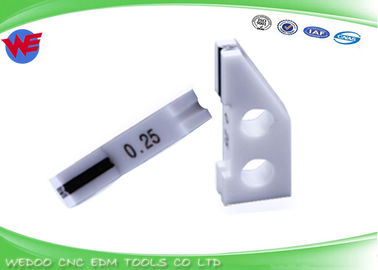

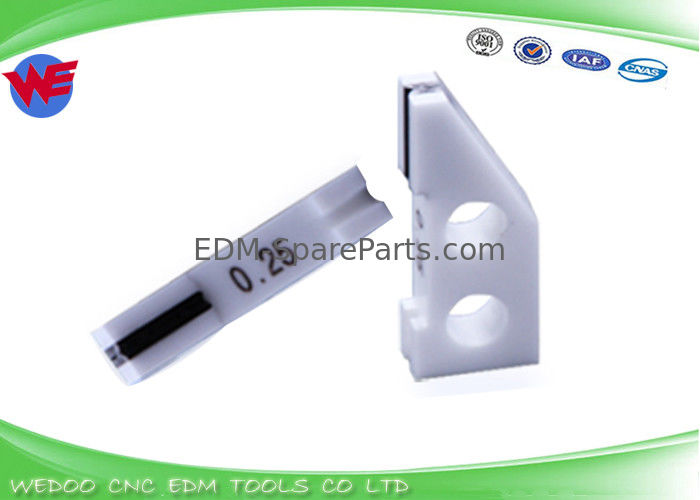

Photo show:
Feature of Makino EDM Wire Guides
1. Using high quality raw materials of diamond
2. Produce by exprienced technician and engineers with Sophisticated machine equipment
3. High precision wire guide, Roundness and radius is tested by video measuring machine, tolerance
-0, +0.02mm
4. Long lifetime , able to use 4 to 7 months
5. Easy to assembly ,and high precision on cutting
6. Competitive price , and large quantity wire guide in stock
Our main products :
* EDM Spare parts : Wire Guide ,nozzles, roller ,power feed contact ,belt ,guide base , discharge cable…
* EDM Consumables: Brass wire , moly wire , JR3A ,Ion exchange resin ,kc-12
* EDM Water Filters
* EDM Drilling Parts : ceramic pipe guide ,ruby pipe guide , rubber seal , drill chuck
* EDM Copper / Brass tube : sighle hole ,double hole , multi hole electrode tube
* EDM Copper tappers
* High speed wire cutting EDM Parts :guide pully , pully assembly , bearing ....
* Jig tools , jig holders
