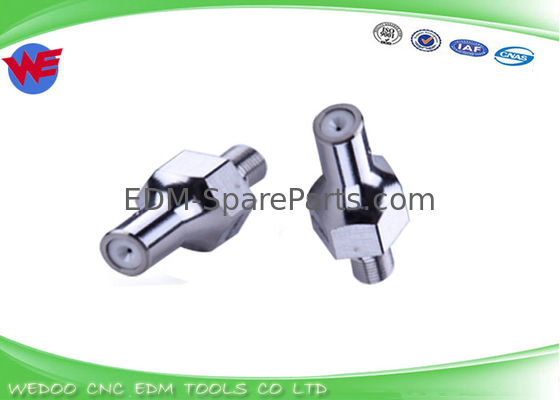

Fanuc Replacement Parts A290-8109-X716, F111T Diamond Guide Lower 0.255

Fanuc Replacement Parts A290-8109-X716, F111T Diamond Guide Lower 0.255
Fanuc Replacement Parts A290-8109-X716, F111T Diamond Guide Lower 0.255
Fanuc Replacement Parts A290-8109-X716, F111T Diamond Guide Lower 0.255 Fanuc Replacement Parts A290-8109-X716, F111T Diamond Guide Lower 0.255 Fanuc Replacement Parts A290-8109-X716, F111T Diamond Guide Lower 0.255 Fanuc Replacement Parts A290-8109-X716, F111T Diamond Guide Lower 0.255 Fanuc Replacement Parts A290-8109-X716, F111T Diamond Guide Lower 0.255

Large Image :  Fanuc Replacement Parts A290-8109-X716, F111T Diamond Guide Lower 0.255

Product Details:
Place of Origin: China
Brand Name: WEDOO
Model Number: F111
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiation
Packaging Details: Packing in a plastic bag
Delivery Time: within 1-3 days after payment
Payment Terms: TT, Western Union, Paypal
Supply Ability: 100000 pcs per month

Fanuc Replacement Parts A290-8109-X716, F111T Diamond Guide Lower 0.255

Description
Name: Fanuc EDM Wire Guides Items No.: F111
Size: 0.205mm, 0.255mm ,0.305mm, 0.105mm , 0.155mm Material: Diamond ,ceramic, Stainless
OEM Code: A290-8101-X740 A290-8101-X742 A290-8101-X743 A290-8101-X744 A290-8101-X745 Fitting Model: A-B,C,iA,iB Series (Manual)
Position: Lower Packing: With Box
High Light:

fanuc wire edm parts

,

fanuc spare parts



F111 EDM Diamond Wire Guide  Fanuc EDM Accessories



FANUC-WEDOO _compress.pdf



Other Dimention & OEM numbers :
Φ 0.205 mm = A290-8109-X715
Φ 0.205 mm = A290-8103-X715
Φ 0.255 mm = A290-8109-X716
Φ 0.255 mm = A290-8103-X716
Φ 0.305 mm = A290-8109-X717

Φ 0.305 mm = A290-8103-X717



Feature of Fanuc EDM Wire Guides



1. Using high quality raw materials of diamond (1mm thickness instead of 0.8mm thickness), ceramic , stainless steel

2. Produce by exprienced technician and engineers with Sophisticated machine equipment

3. High precision wire guide, Roundness and radius is tested by video measuring machine, tolerance

-0, +0.02mm

3. Competitive price , and large quantity wire guide in stock

4. Many size of EDM Wire Guides are available

5. Long lifetime , easy to assembly ,and high precision on cutting

6. 3 months Guarantee



Details:



Item No. OEM Code Size (mm) Application (details)
F111 A290-8101-X740
A290-8101-X742
A290-8101-X743
A290-8101-X744
A290-8101-X745
0.105
0.155
0.205
0.255
0.305
Lower wire guide (Alpha)
a-B,C,iA,iB series (Manual)
Shallow-opener
L=24.6mm Flush hole Φ0.8



Photo show:



Fanuc Replacement Parts A290-8109-X716, F111T Diamond Guide Lower 0.255 0





Advantages Of EDM Diamond Wire Guide From WEDOO CNC EDM TOOLS



Definition: Diamond Wire Gudie is EDM Wire cutting machine tool accessories, belongs to small parts, but it bears the mission of high precision. A high quality diamond Wire Guide have to bear high temperature and high pressure, high precision, not easy to abrasion -----this four standards.


Application range: Diamond Wire Guide mainly applies to Zinc Coated Wire, Molybdenum Wire and EDM Brass Wire.


Material: Choose industry synthetic diamond stone as the most importance material, high hardness, high precision, good abrasion resistance and surface smoothness . Using zirconia type ceramic ,the hardness is better than aluminium oxide type ceramic .High quality stainless steel as housing of EDM Diamond Guide.


Lifetime: Normal processing works 24 hours a day. The Wire Guide provided by WEDOO can achieve > 4500 Hours


Size: From 0.1mm to 0.31mm


There are many type difference Diamond Wire Guide for difference EDM Wire cut machine, such as Sodick, Makino, Fanuc,Charmilles,Mitsubishi,Chmer a variety of brands, although the shape of Wire Guide is different, but its effect is the same: to wear Brass wire



How about delivery details:



NO. Ways fo shipment Feature Delivery time Our suggest
1 Express (FedEx,DHL,TNT , EMS etc.) Expensive, but fast,
delivery to door
3-10 days small package
0- 100kg
2 Shipping by Sea Low cost ,take a long time,
delivery to sea port.
more than 15 days
Base on the distance
More than
100kg
3 Shipping by Air Mid-priced,fast ,
delivery to air port
5-10 days 60-200kg
4 EXW terms
( Arrange the shipment
by yourself)
Pick up the material from our
office by yourself agency
It depends It depens
