Product Details:
|
| Key Words: | Fanuc Fine EDM Wire Guide | Size: | 0.205mm, 0.255mm, 0.305mm,0.105 |
|---|---|---|---|
| Fitting Model: | α -A,B,C,iA,iB,iC,iD Series | Original Code: | A290-8092-X702 |
| Position: | Upper | Materails: | Stainless Housing ,diamond And Ceramic Insert |
| High Light: | fanuc wire edm parts,fanuc spare parts |
||

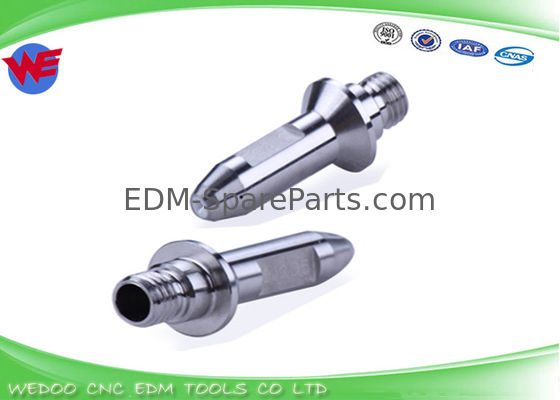

F112-1 Finish Cut EDM Diamond Wire Guide For Fanuc EDM Machines
Upper high accuracy EDM Wire Guide
Size :0.105mm, 0.155mm, 0.205mm, 0.255mm, 0.305mm
Fitting for Fanuc a-A,B,C,iA,iB , iC, iD, iE series (AWF)
Original Code: A290-8092-X702
High precision wire guide is using for finish cutting materials
Long life time than normal EDM Wire Guide
Details of High Precision Fanuc Diamond Wire Guide
| Item No. | Product | Position | Application | Size | OEM Code |
| F112-1 |
Wire Guide (For high accuracy cut) |
Upper | a-A,B,C,iA,iB , iC, iD, iE series (AWF) |
0.202mm 0.252mm 0.302mm |
A290-8104-Y705 A290-8104-Y706 A290-8104-Y707
|
| F112-2 |
Wire Guide (For tapper 45 degree) |
Upper | a-A,B,C,iA,iB , iC, iD, iE series (AWF) |
0.205mm 0.255mm 0.305mm |
A290-8104-X705 A290-8104-X706 A290-8104-X707 |
Advantages of Our wire guide
Definition: Diamond Wire Gudie is EDM Wire cutting machine tool accessories, belongs to small parts, but it bears the mission of high precision, a high quality diamond Wire Guide have to bear high temperature and high pressure, high precision, not easy to abrasion -----this four standards.
Application range: Diamond Wire Guide mainly applies to Zinc Coated Wire, Molybdenum Wire and EDM Brass Wire.
Material: choose industry synthetic diamond stone as the most importance material, high hardness, high precision, good abrasion resistance and surface smoothness . Using zirconia type ceramic ,the hardness is better than aluminium oxide type ceramic .High quality stainless steel as housing of EDM Diamond Guide.
Lifetime: Normal processing works 24 hours a day. The Wire Guide provided by WEDOO can achieve > 4500 Hours
Size: From 0.1mm to 0.31mm
There are many type difference Diamond Wire Guide for difference EDM Wire cut machine, such as Sodick, Makino, Fanuc,Charmilles,Mitsubishi,Chmer a variety of brands, although the shape of Wire Guide is different, but its effect is the same: to wear Brass wire
The most hot products of us.
EDM Spare Parts: EDM Diamond Guide ,Water Nozzle ,Power Feed Contact,Ceramic rollers
EDM Consumables: EDM Water Filter , Moly Wire, Resin, Brass Wire
Drilling Machines Parts: EDM Drill Guides, EDM Copper / Brass Tube
Pulley, Pulley assambly ,Bearing for High speed wire cut EDM Machines
