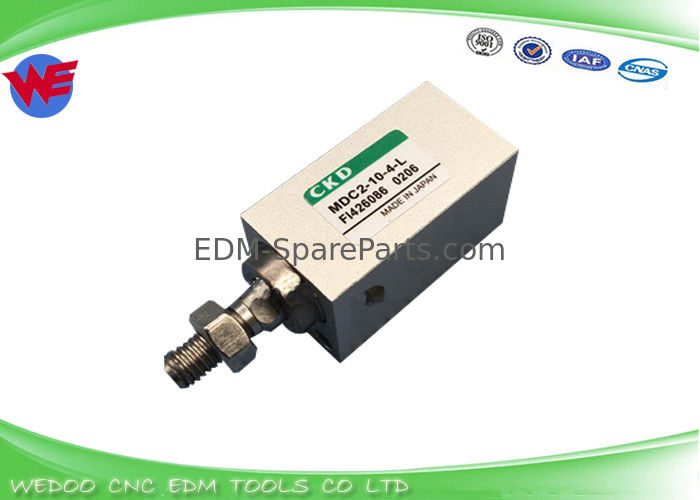

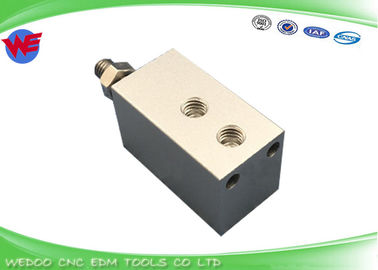

CKD Steel Fanuc Wire EDM Wear Parts A97L-0203-0507 CKD Valve Cylinder MDC2-10-4-L
FANUC-WEDOO _compress.pdf
Original code: A97L-0203-0507 MDC2-10-4-L
For moldel
Details:
| OEM Code |
Size (mm) |
Application (details) |
|
A97L-0203-0507
MDC2-10-4-L
|
|
Valve
DWC- Fanuc
|
For use on : Fanuc EDM machines.
Fanuc α-0iE with AWF, Fanuc α-1iE with AWF, Fanuc α-C400iA with AWF, Fanuc α-C400iB with AWF,
Fanuc α-C600iA with AWF, Fanuc α-C600iB with AWF, Fanuc α-C800iB with AWF
Associated parts & OEM number:
A : Lower nozzle
B : Lower Die guide
C : Locknut ring A98L-00010347#S36-W
D : Locknut A290-8119-Z777
E : Die guide base A290-8120-Z763
F : Electrode pin A290-8119-Z780
G : Electrode pin stopper A6-SAKT-5X20SUS
H : Insulating seat A290-8119-Z762
I : Lower jet block A290-8120-Z764
J : O-ring A98L-0001-0347#S10-J
K : Lower subdie guide A290-8110-Y774
L : Non-rotation block A290-8119-Z785
M : Cylinder base A290-8120-Z783
N : Cylinder A97L-0203-0507
O : Insulating shaft A290-8119-Z784
P : Electrode pin holder 1 A290-8120-Z781
Q : Electrode pin holder 2 A290-8119-Z782
R : Blade spring A290-8119-Z793
