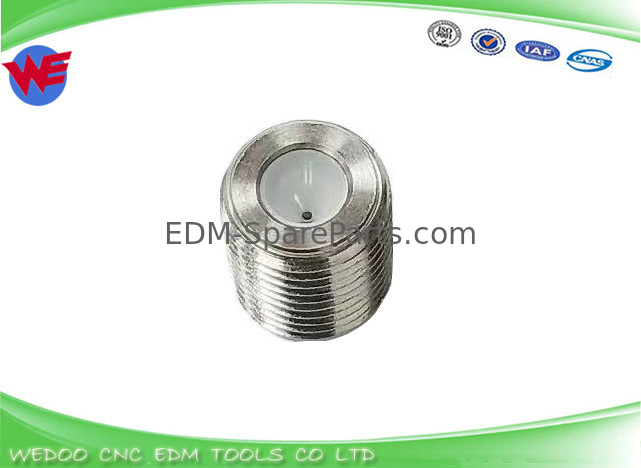

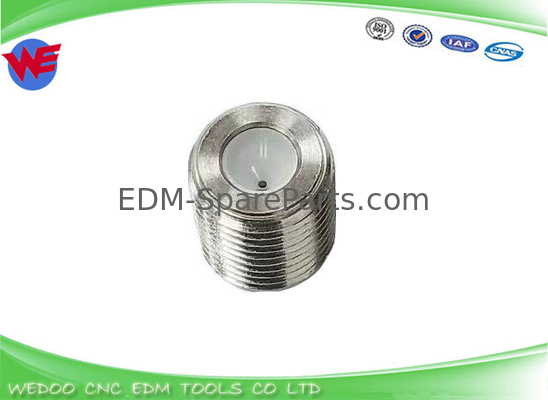

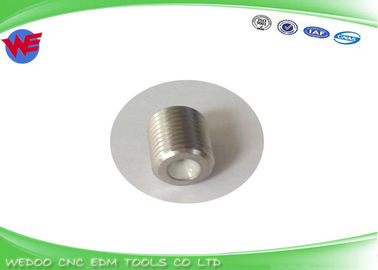

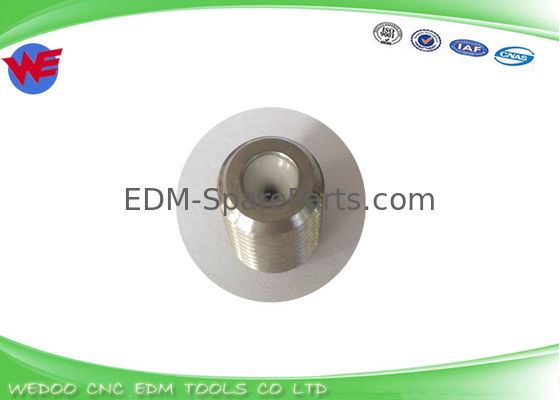

X059D084G51, DH30200 -0.5mm Die Guide X059D084G51,DH33900 X088D339G51- 1.0 mm

M138 Mitsubishi EDM Consumables Sub Die Guide A 1.0mm

M137 Die Guide - 0.5mm For Mitsubishi machine use (Made in China)

M138 Die Guide - 1.0mm For Mitsubishi machine use (Made in China)

MITSUBISHI _compress.pdf

Upper Sub Die Guide

Dia : 0.5mm; 1.0mm

Original Code : DH33900. X058D963G51, X059D084G51 , 34.010.023

M137  Mitsubishi Sup Guide Die X059D084G51, DH30200, 34.010.022  ID=0.5MM

M138  Mitsubishi Sup Guide Die X058D963G51, X088D339G51, DH33900, 34.010.023  ID=1.0MM

M110 Mitsubishi Sup Guide Die X053C136G54, ID=0.6MM  OD5*L7*ID0.6MM

M110 Mitsubishi Sup Guide Die X053C136G52 Die Guide - 0.4mm OD5*L7*ID0.4MM

MV139  Mitsubishi Sup Guide Die X085C079G53.DEG39A .ID=0.6MM

Machine Model: Mitsubishi DW C-RA,FA,FA-V,FA-VS,BA,NA

Feature of Mitsubishi EDM Diamond Wire Guides

1. Using high quality raw materials of diamond (1mm thickness instead of 0.8mm thickness), ceramic , stainless steel

2. Produce by exprienced technician and engineers with Sophisticated machine equipment

3.High precision wire guide, Roundness and radius is tested by video measuring machine, tolerance

-0, +0.02mm

3. Competitive price , and large quantity wire guide in stock

4. Many size of EDM Wire Guides are available

5. Long lifetime , can be used 4 to 7 months

6. Easy to assembly ,and high precision on cutting

7. Special size ,it is available to custmized made

Details:

Advantages Of EDM Diamond Wire Guide From WEDOO CNC EDM TOOLS

Definition: Diamond Wire Gudie is EDM Wire cutting machine tool accessories, belongs to small parts, but it bears the mission of high precision. A high quality diamond Wire Guide have to bear high temperature and high pressure, high precision, not easy to abrasion -----this four standards.

Application range: Diamond Wire Guide mainly applies to Zinc Coated Wire, Molybdenum Wire and EDM Brass Wire.

Material: Choose industry synthetic diamond stone as the most importance material, high hardness, high precision, good abrasion resistance and surface smoothness . Using zirconia type ceramic ,the hardness is better than aluminium oxide type ceramic .High quality stainless steel as housing of EDM Diamond Guide.

Lifetime: Normal processing works 24 hours a day. The Wire Guide provided by WEDOO can achieve > 4500 Hours

Size: From 0.1mm to 0.31mm

There are many type difference Diamond Wire Guide for difference EDM Wire cut machine, such as Sodick, Makino, Fanuc,Charmilles,Mitsubishi,Chmer a variety of brands, although the shape of Wire Guide is different, but its effect is the same: to wear Brass wire

Main Market of us :

Asia , Europe , America , Africa

Countries :

India , Korea, USA, Italy , Germany , Hungary Netherlands Holland , Portugal, Spain, Australia , New Zealand, Iran, Turkey ,Thailand, Singapore, Phillippines, Malaysia , Indonesia ,Cananda, Brazil ,Chile,Mexico, Belgium, South africa, Israel, Peru ...

Every year ,there are some customers come and visits ,and have a good friendship with us . Bussiness is better and betterboth us ! Hope more customers come to China and meet us to discuss bussiness detail , Tour trip also is welcome !
