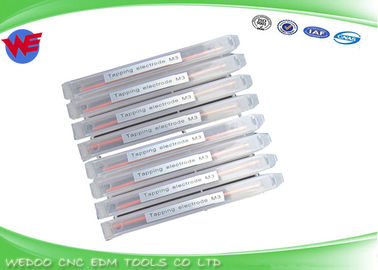

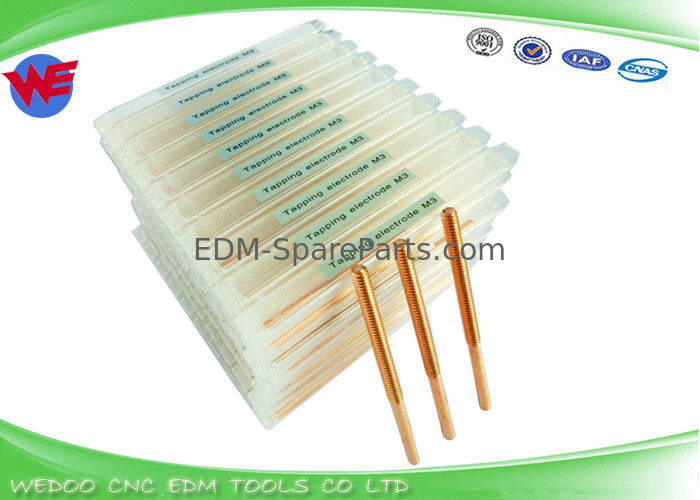

M3 EDM Copper Electrode Tapping 50 X 80 , 55x70 With Fast Delivery

M3 EDM Copper Electrode Tapping 50 X 80 ,  55x70 With Fast Delivery
M3 EDM Copper Electrode Tapping 50 X 80 ,  55x70 With Fast Delivery M3 EDM Copper Electrode Tapping 50 X 80 ,  55x70 With Fast Delivery M3 EDM Copper Electrode Tapping 50 X 80 ,  55x70 With Fast Delivery

Large Image :  M3 EDM Copper Electrode Tapping 50 X 80 , 55x70 With Fast Delivery

Product Details:
Place of Origin: China
Brand Name: WEDOO
Model Number: M3
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiation
Packaging Details: Packing in box
Delivery Time: within 1-5 days after payment
Payment Terms: TT, Western Union, Paypal
Supply Ability: 50000 pcs per month

M3 EDM Copper Electrode Tapping 50 X 80 , 55x70 With Fast Delivery

Description
Name: EDM Threading Electodes Items No.: M3
Material: Copper Total Length: 80mm
Tap Length: 50mm Under Quota Dia.: 1.85mm
Coarse Pitch: 0.5mm Color: Red
High Light:

copper electrode material

,

copper tungsten electrodes

,

M3 EDM Copper Electrode



M3 Thread Electrode Tapppers Without Hole M4x0.7 For EDM Machine



Total length: 80mm ;Tap length:50mm

Difference length Tapping Electrodes is available, nomarl length is 80x50mm, 70x55mm ,

75x50mm,55x35mm.

Threading electrode range : M2 to M22

International standard spec. Fine processing , high quality Tapping Electrode , be well received by oversea customers .



EDM Copper Electrode Tapping for EDM Spark Machkine and EDM Drilling Machine is available !

Large quantity in stock ,fast delivery !



M3 EDM Copper Electrode Tapping 50 X 80 ,  55x70 With Fast Delivery 0M3 EDM Copper Electrode Tapping 50 X 80 ,  55x70 With Fast Delivery 1

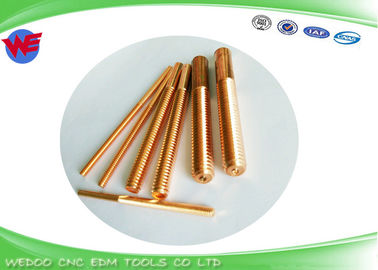

Tapping Electrodes M2-M20



* Copper tapper without hole

* Copper Tapper with hole

* Tungsten Copper Tapper without hole

* Tungsten Copper Tapper with hole





Materials details



CuW50 and CuW55 have the lowest Tungsten contents. They are both good switching and contact materials for oil filled devices. CuW55 is also used for arcing contacts in oil circuit breakers and arcing edges of selectors and switchblades in transformer tap changers.


CuW65 and CuW70 are used as contact materials in severe arcing applications including gas, oil and some air circuit breakers. They are also used for arcing edges on selectors and reversing switch blades.


CuW75 and CuW80 are used as contact materials under extreme arcing conditions. Applications include arcing contacts in gas and oil circuit breakers, contactors and transformer tap changers, arcing plates and arc runners in power switching equipment.

CuW85 and CuW90 have the highest Tungsten content. They are used as contact materials where resistance to contact welding, sticking and arc erosion are critical. They also provide satisfactory heat and current interruption capabilities. Typical applications are power vacuum switches and high power spark gap electrodes, etc



If you need Tapping Electrode with Tungsten copper ( CuW ) ,or Copper (Cu) , without hole / with hole , in order to choice

the right one products, Please keep in touch with us about your detail demands.



For special size ,customized items is available to made!





Details



EDM Copper Tapping Electrodes   CU
Tapping Total
L(mm)
Tap L
(mm)
Thin pitch Under quta D
M2x0.4 50 20
M2.5x0.45 50 20
M3x0.5 80 50   2.3
M4x0.7 80 50   2.9
M5x0.8 80 50 0.5 3.8
M6x1.0 80 50 0.75 4.5
M8x1.25 80 50 0.75-1 6
M10x1.5 80 50 1 7.8
M12x1.75 80 50 1-1.25-1.5 9.4
M14x2 80 50 1-1.25-1.5 11.1
M16x2 80 50 1.5 13.1
M18x2.5 80 50   14.4









We are Think what you are desire and worries!


Buyer: The products made in China is poor quality , it is waste money to buy products .

Suplier: Sorry to say your idea was wrong ! It is new China ,Whether it's equipment and technology, it's advanced enough!



Buyer: I am user ,only need a small quantity of EDM Parts, it is not profitable.
Supplier: In fact , if you buying big valume and heavy products ( EDM Filter ,Brass wire) ,it is really not worth.But for small EDM Parts such as wire guide , nozzle, power feed contact, rollers, pipe guide, import from us ,you will save much money .Payment by Paypal it is so easy. And shipping cost is also not expensive.



Buyer: It is too cheap of products make in China, I am afraid the quality is not good.
Supplier: First ,all our products have guaranty .And trial order is available to test quality in advance.



Buyer: Once I made payment ,and supplier refused to shipment any goods .
Supplier: Without trust, business will be stop and no moving . There are few cheater in the world, but most person is nice ,friendly.What's more ,we are not do business only one days ,a good reputation is so important for us , we are not so stupid to anything which no any helpfull for our business .


Buyer: We need a vast quantity of products ,can we to be your agent in my countries?
Supplier: Sure, If your quanity is reached our standard ,we are happy to cooperate with you as our agent! We will try our best to support you!
