Product Details:
|
| Name: | EDM Pulley Assembly | Items No.: | 198 |
|---|---|---|---|
| Materail: | Brass, Tungsten, Stainless | Size: | 42D X 68mmL |
| Related Bearing Size: | 625 (16*5*5) | Application:: | Baomao Wire Cut EDM Machine |
| Composition:: | Brass Seat, Pulley, Bearing | Color: | Golden |
| High Light: | guide roller wheels,steel roller wheels |
||

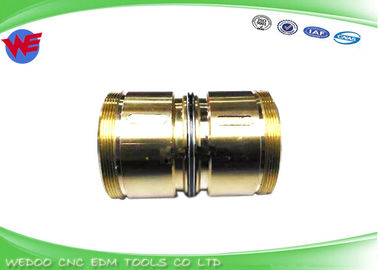

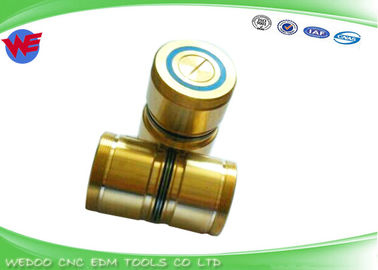

Baoma High Speed EDM Machine Parts 198 Guide Wheel Pulley Assembly
Composition:
Brass seat size: 42D*32mmL (2 pcs)
Bearing size: 16*5*5mm (625) ( 4 pcs)
Pulley size: 40x51.6mm (198) (1 pc)
| Model No. | Assembly Size | Brass seat size | Pulley size | Bearing |
| 198 | OD42 * 68mmL | 42D*32mmL | 40*51.6mm | 625 (16x5x5) |
Related 198 Pulley Assembly
Specification of brass guide seat: 42D x 32mmL / 42D x 28.5mmL
Products show
High precision:
Guide Wheel/Pulley Assembly For CNC High Speed Wire Cutting EDM Machine, assembled with guide wheel/pulley, brass base and bearings.
1. Guide wheel installation must be cleaned before installation, bearings after matching.
2. After installation manual, feel relaxed, flexible, non-blocking
3. Installation are not allowed to directly tap the guide wheel plane to prevent damage to the accuracy and face deformation.
V-shaped groove: radial runout ≤ 0.004mm; axial runout ≤ 0.004mm; bottom beating ≤ 0.004mm
4. Provide you with the wire cutting guide wheel size, we can custom processing.
Feel free to contact us ,if any inquiry!
