Product Details:
|
| Name: | EDM Water Filter | Items No: | OM-340 |
|---|---|---|---|
| Size: | 340x46x300H | Fitting Model: | Sodick ,Fanuc EDM Wire Cut Machine |
| Type: | Internal / External | Working Time: | 720 H |
| The Highest Pressure: | 198kpa | Shape: | Cylinder |
| Highlight: | edm filter,wire cut filters |
||

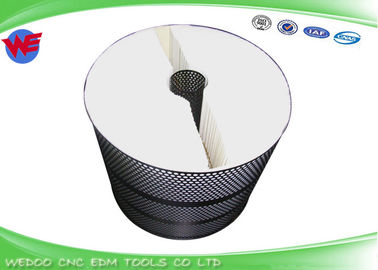

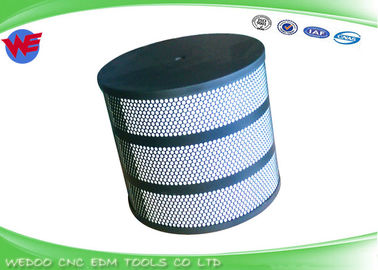

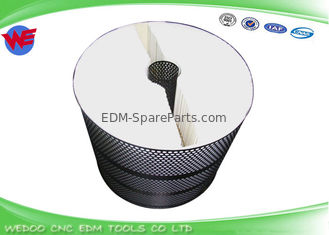

High Presicion Supper EDM Water Filter For Sodick EDM Machines
1. Size: 340x46x300H
2. Type : Internal / External
3. Weight about 10KG
4. Using fine filter paper, 1-3u, imported from Japan
5. Fitting machines: Sodick , Fanuc
6. Certification: ISO9001, SGS,
7. High precision filtration ,and long lifetime , 300 hours working time more than standard water filter
Details of 340 Water Filters
| Item No. | Size (mm) | Applicable models | Filtration precision level |
Filter Area |
Weight | Max Pressure |
Working Time |
| OM-340 | 340x46x300H | Fancu ,Sodick | 1-3u | 14-16㎡ | 10kg | 198 kpa | 720H + |
Note : We can produce difference type filter for the same model and the same specification.
1. Filter paper : Made in China ,German, Japan.
2. Single layer filter paper (Internal ); Double layer filter paper (Internal / External )
The workshop and products.
Product Feature:
Filtering ratings: between 1-3 µ m
Stable and durable quality of every filter is assured by strictmanufacturing technics and quality check.
Longer life extension.
Excellent filtration of deionization.
Great filtration area and filtration efficiency with specialorigami techniques and methods.
Most sizes and specifications are available to meet customers different requirements for all types of machine tools
Quality description:
1. The filtration precision level comes with standard type thigh 5µ m, special type with 3µ m and 10 µ m.
2. Working life of the filter ,beside the use of single filtration system,there will be a large difference when cutting special materials, e.g. tungsten stell, Alloy, metallurgy steel,copper and aluminum and so on. In
the case of long usage time ,it will also affect the life of filter .Cleaning of machine, Rouughing cut and
finishing cut will have a large difference in the life span during comparison.
3. Phonemenon of the water when newly installed (possible within 1 to 2 days ): slight turbidity of water quality and or little bubbles could be seen,this ondition will be stabilize after 2 days and this phenomenon
is consideer normal which will not affect the result.
4. Our filter whigh acceptaple condition can be washed and dry for further re-use .
5. Once the stipulated litered substance exceed the weight of our specifiation,the filter has completed its
life cycle and this is in accordance to the design requirement.
6. There will be a difference in life span for the filter in the event of fully submerge machine versus partially submerge type.
