A290-8104-Y706 A290-8104-Y705 A290-8104-Y704 Fanuc Diamond Wire Guide A290-8104-Y707

A290-8104-Y706 A290-8104-Y705 A290-8104-Y704 Fanuc Diamond Wire Guide A290-8104-Y707
A290-8104-Y706 A290-8104-Y705 A290-8104-Y704 Fanuc Diamond Wire Guide A290-8104-Y707
A290-8104-Y706 A290-8104-Y705 A290-8104-Y704 Fanuc Diamond Wire Guide A290-8104-Y707 A290-8104-Y706 A290-8104-Y705 A290-8104-Y704 Fanuc Diamond Wire Guide A290-8104-Y707 A290-8104-Y706 A290-8104-Y705 A290-8104-Y704 Fanuc Diamond Wire Guide A290-8104-Y707

Large Image :  A290-8104-Y706 A290-8104-Y705 A290-8104-Y704 Fanuc Diamond Wire Guide A290-8104-Y707

Product Details:
Place of Origin: China
Brand Name: WEDOO
Model Number: F112-1
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiation
Packaging Details: Packing in a plastic box
Delivery Time: within 1-5 days after payment
Payment Terms: T/T, Western Union, Paypal

A290-8104-Y706 A290-8104-Y705 A290-8104-Y704 Fanuc Diamond Wire Guide A290-8104-Y707

Description
Key Words: Fanuc Fine EDM Wire Guide Size: 0.202mm, 0.252mm, 0.302mm
Fitting Model: A-A,B,C,iA,iB , IC, ID, IE Series (AWF) Original Code: A290-8104-Y705, A290-8104-Y706
Position: Upper Materails: Stainless Housing ,diamond And Ceramic Insert
Highlight:

wire edm spare parts

,

wire edm parts

,

A290-8104-Y706 Wire Guide



 F112-1 Finish Cut EDM Diamond Wire Guide For Fanuc EDM Machines, Upper wire guide High Precision



FANUC-WEDOO _compress.pdf



 Upper high accuracy EDM  Wire Guide

Size :0.102mm, 0.152mm, 0.202mm, 0.252mm, 0.302mm

Fitting for Fanuc a-A,B,C,iA,iB , iC, iD, iE series (AWF)

Original Code: A290-8104-Y705, A290-8104-Y705, A290-8104-Y706

High precision wire guide is using for finish cutting materials

Long life time than normal EDM Wire Guide



Upper wire guide High Precision A290-8104-Y702 ID=0.105MM

Upper wire guide High Precision A290-8104-Y704 ID=0.155MM

Upper wire guide High Precision A290-8104-Y705 ID=0.205MM

Upper wire guide High Precision A290-8104-Y706 ID=0.255MM

Upper wire guide High Precision A290-8104-Y707 ID=0.305MM



Upper wire guide 45° A290-8104-X706 ID =0.255MM

Upper wire guide 45° A290-8103-X706 ID =0.255MM

Upper wire guide 45° A290-8112-Z706 ID =0.255MM



Details of High Precision Fanuc Diamond Wire Guide



Item No. Product Position Application Size OEM Code
F112-1

Wire Guide

(For high accuracy cut)

 Upper a-A,B,C,iA,iB , iC, iD, iE series (AWF)



0.202mm

0.252mm

0.302mm



A290-8104-Y705

A290-8104-Y706

A290-8104-Y707



F112-2

Wire Guide

(For tapper 45 degree)

Upper a-A,B,C,iA,iB , iC, iD, iE series (AWF)



0.205mm

0.255mm

0.305mm

A290-8104-X705

A290-8104-X706

A290-8104-X707

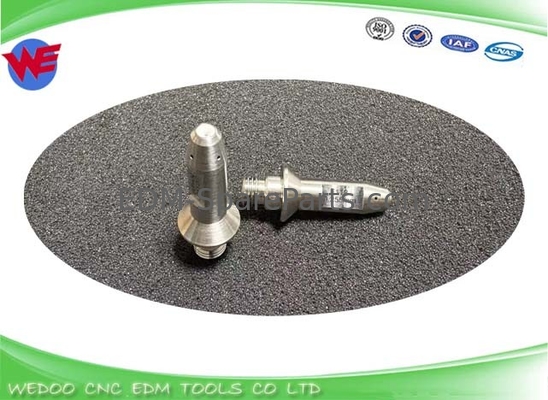

Photo show:



A290-8104-Y706 A290-8104-Y705 A290-8104-Y704 Fanuc Diamond Wire Guide A290-8104-Y707 0



Advantages of Our wire guide



Definition: Diamond Wire Gudie is EDM Wire cutting machine tool accessories, belongs to small parts, but it bears the mission of high precision, a high quality diamond Wire Guide have to bear high temperature and high pressure, high precision, not easy to abrasion -----this four standards.
Application range: Diamond Wire Guide mainly applies to Zinc Coated Wire, Molybdenum Wire and EDM Brass Wire.
Material: choose industry synthetic diamond stone as the most importance material, high hardness, high precision, good abrasion resistance and surface smoothness . Using zirconia type ceramic ,the hardness is better than aluminium oxide type ceramic .High quality stainless steel as housing of EDM Diamond Guide.
Lifetime: Normal processing works 24 hours a day. The Wire Guide provided by WEDOO can achieve > 4500 Hours
Size: From 0.1mm to 0.31mm
There are many type difference Diamond Wire Guide for difference EDM Wire cut machine, such as Sodick, Makino, Fanuc,Charmilles,Mitsubishi,Chmer a variety of brands, although the shape of Wire Guide is different, but its effect is the same: to wear Brass wire



The most hot products of us.


EDM Spare Parts: EDM Diamond Guide ,Water Nozzle ,Power Feed Contact,Ceramic rollers

EDM Consumables: EDM Water Filter , Moly Wire, Resin, Brass Wire

Drilling Machines Parts: EDM Drill Guides, EDM Copper / Brass Tube

Pulley, Pulley assambly ,Bearing for High speed wire cut EDM Machines
