A290-8092-X702 F112 Wire Guide Fanuc A290-8104-X705 A290-8104-X706 A290-8104-X707

 F112-1 Finish Cut EDM Diamond Wire Guide For Fanuc EDM Machines

FANUC-WEDOO _compress.pdf

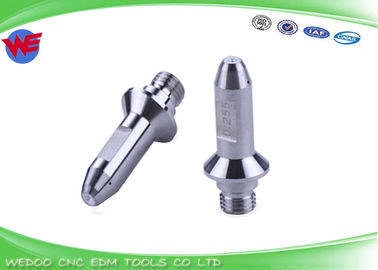

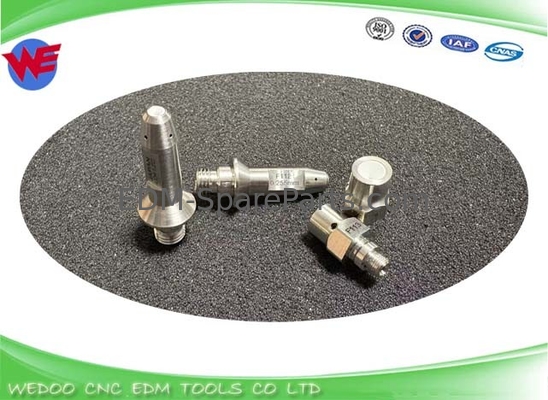

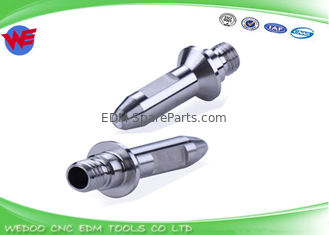

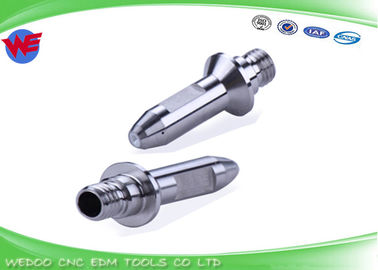

F112 WIRE GUIDE For Fanuc machine use (Made in China)

 Upper high accuracy EDM  Wire Guide

Size :0.105mm, 0.155mm, 0.205mm, 0.255mm, 0.305mm

Fitting for Fanuc a-A,B,C,iA,iB , iC, iD, iE series (AWF)

Original Code: A290-8092-X702

High precision wire guide is using for finish cutting materials

Long life time than normal EDM Wire Guide

Details of High Precision Fanuc Diamond Wire Guide

Advantages of Our wire guide

Definition: Diamond Wire Gudie is EDM Wire cutting machine tool accessories, belongs to small parts, but it bears the mission of high precision, a high quality diamond Wire Guide have to bear high temperature and high pressure, high precision, not easy to abrasion -----this four standards.
Application range: Diamond Wire Guide mainly applies to Zinc Coated Wire, Molybdenum Wire and EDM Brass Wire.
Material: choose industry synthetic diamond stone as the most importance material, high hardness, high precision, good abrasion resistance and surface smoothness . Using zirconia type ceramic ,the hardness is better than aluminium oxide type ceramic .High quality stainless steel as housing of EDM Diamond Guide.
Lifetime: Normal processing works 24 hours a day. The Wire Guide provided by WEDOO can achieve > 4500 Hours
Size: From 0.1mm to 0.31mm
There are many type difference Diamond Wire Guide for difference EDM Wire cut machine, such as Sodick, Makino, Fanuc,Charmilles,Mitsubishi,Chmer a variety of brands, although the shape of Wire Guide is different, but its effect is the same: to wear Brass wire

The most hot products of us.

EDM Spare Parts: EDM Diamond Guide ,Water Nozzle ,Power Feed Contact,Ceramic rollers

EDM Consumables: EDM Water Filter , Moly Wire, Resin, Brass Wire

Drilling Machines Parts: EDM Drill Guides, EDM Copper / Brass Tube

Pulley, Pulley assambly ,Bearing for High speed wire cut EDM Machines
