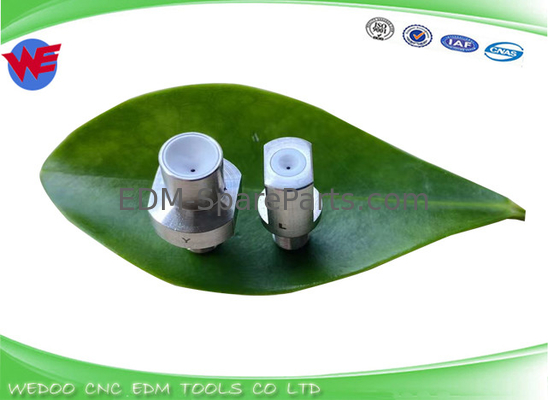

DEG31A DEG38A DEG35A DEG27A Wire Angle D D Guide MV MP Mitsubishi DFW3800 DEG2700

M115&M116 DEG3600 DEG3500 MV EDM Diamond Wire Guide Lower For Mitsubishi EDM Machine

 Lower EDM  Wire Guide

Size : 0.255mm, 0.205mm, 0.305mm

Fitting for Mitsubishi DWC-MV MP

Original Code: X052B609G64  X052B609G63  X052B609G62

High precision ,  all wire guide test one by one with brass wire , and brass wire is easy to through

the wire guides

MV MP D D Wire Guide For Mitsubishi machine use (Made in China)

M115 Upper Diamond Wire Guide MV Serie : X052B627G66 (DEG2400) (DFW3500) (DEG24A) D=0.105mm

M115 Upper Diamond Wire Guide MV Serie : X052B627G65 (DEG2500) (DFW3600) (DEG25A) D=0.155mm

M115 Upper Diamond Wire Guide MV Serie : X052B627G64 (DEG2600) (DFW3700) (DEG26A) (DEG30A) D=0.205mm

M115 Upper Diamond Wire Guide MV Serie : X052B627G63 (DEG2700) (DFW3800) (DEG27A) (DEG31A) (252215) D=0.255mm

M115 Upper Diamond Wire Guide MV Serie : X052B627G62 (DEG2800) (DFW3900) (DEG28A) D=0.305mm

M116 Upper Diamond Wire Guide MV Serie : X052B609G66 (DEG3200) (DFW4000) (DEG32A) D=0.105mm

M116 Upper Diamond Wire Guide MV Serie : X052B609G65 (DEG3300) (DFW4100) (DEG33A) D=0.155mm

M116 Upper Diamond Wire Guide MV Serie : X052B609G64 (DEG3400) (DFW4200) (DEG34A) (DEG37A) D=0.205mm

M116 Upper Diamond Wire Guide MV Serie : X052B609G63 (DEG3500) (DFW4300) (DEG35A) (DEG38A) D=0.255mm

M116 Upper Diamond Wire Guide MV Serie : X052B609G62 (DEG3600) (DFW4400) (DEG36A) D=0.305mm

Details:

Feature of MV EDM Diamond Wire Guides

1. Using high quality raw materials of diamond  ceramic , stainless steel

2. Produce by exprienced technician and engineers with Sophisticated machine equipment

3. High precision wire guide, Roundness and radius is tested by video measuring machine, tolerance

-0, +0.02mm

4. Easy to assembly ,and high precision on cutting

5. Long lifetime , can be used 4 to 7 months

6. Competitive price , and large quantity wire guide in stock
