Product Details:
|
| Name: | EDM Sealing Groove Ring | Size: | 165D X 114d X 34T |
|---|---|---|---|
| Category: | Sodick EDM Repair Parts | Model: | AQ AD VZ Series |
| Position: | Y Axis | ||
| High Light: | AG600 Sealing Groove Ring,VZ500 Sealing Groove Ring,AQ400 Sealing Groove Ring |
||
AQ325 AQ535 AG400 AG600 VZ300 Sodick EDM Repair Parts Y Axis Sealing Groove Ring fixed ring
Size: OD=165mm, ID=114mm, T=32mm

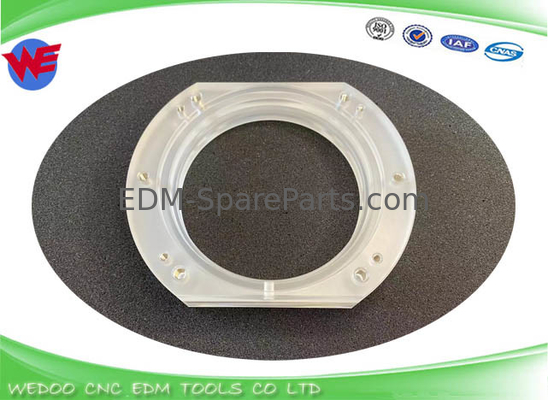

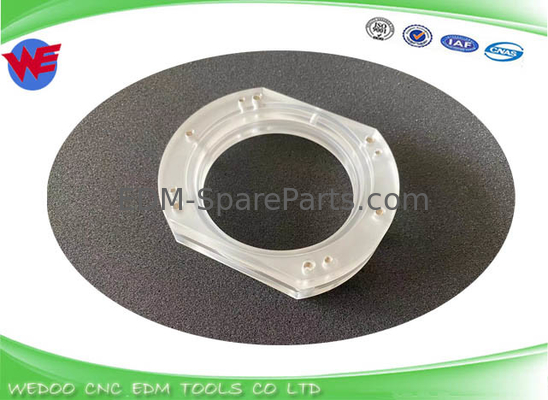

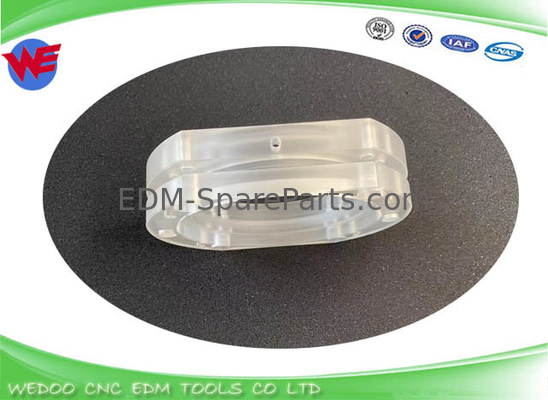

Photo show:
Some special items for Sodick maintenance :
EDM Repair replacement parts include
edm Cam Follower F5UUM-A, edm Slide Plate, edm Sealing Felt, Sealing Ring, edm Seal Spring,
edm Sealing Strip for Slide Plate, Seal Plate, Seal Pipe Seal Tank, GF Tube etc... for wire-cut edm mchines
AQ360/AQ400/AQ537/AQ325/AQ327/AQ535/AQ600/AQ560/AQ300/A500W/350W/A320/AQ750/AD360/AD400/AD600/AG400/AG600/SL etc..
Sodick SLC 600G for SEAL PLATE 118797A , SEAL PLATE 118507B , PACKING 3034607 , SLIDE PLATE 1127MA , SEAL FELT-A 3030946 , STOPPER 3030870 , CAM FOLLOWER/CF5UUM-A 2091378 , WIPER 3032835 , WIPER A 3034428 , WIPER B 3034427 , WIPER SPRING 3031980 , SEAL SPRING 3032834 , PACKING J07599A , SEAL PIPE WITH GF TUDE 118899C.
Sodick AQ327L / 118573A 118507A , 3032013 B12343B 3030946 3030870 2091378 3032835 3034428 3034427 3031980 SPRING , 3032834 J07599A 113572A
SODICK VZ500L / 118573A 118507A 30321013 11272JA 21334CA 3030946 2090373 3032835 3034428 CW400871A 3034427 CW40085A 3031972
SODICK AQ900L / 11844A MT403167A 118445A MT403168A 118413C MT402T57C 3087032 3030870 2090373 2070331 3034523 3034524
SODICK AQ535L / 118573A 118507A 30321013 11272JA 21334CA 3030946 2090373 3032835 3034428 CW400871A 3034427 CW40085A 3031972 118097A
SODICK AQ600L / 3035487 3034651 11227MA 113675A 3034607 3035710 3034662 3034427 3034428 3032835 3031980 3032834 3056414 2992297
SODICK AQ560 / 3034745 3034651 3034771 3034746 3034822 3034651 3034746
SODICK AQ400 / 3035574 3034651 3035572 2091378 3034662 3032834 3032835 3034428 3034427 3034607 3031980 3056592
SODICK AQ325L / 3032739 3031174 3030870 B12343B 3031971 3031793
Free free to contact with us for more details !
