Product Details:
|
| Name: | EDM Drill Machine | Items No.: | JS-4535CNC |
|---|---|---|---|
| Material: | Metal | Work Travel: | 450*350mm |
| Maching Hole Size: | 0.15-3.0mm | Max Working Load: | 300kg |
| Color: | Orange, Gray, Black | Encoder: | Taiwan 10000 1u Optical Ruler |
| High Light: | Classic style EDM Drilling Machine,450*350mm EDM Drilling Machine |
||

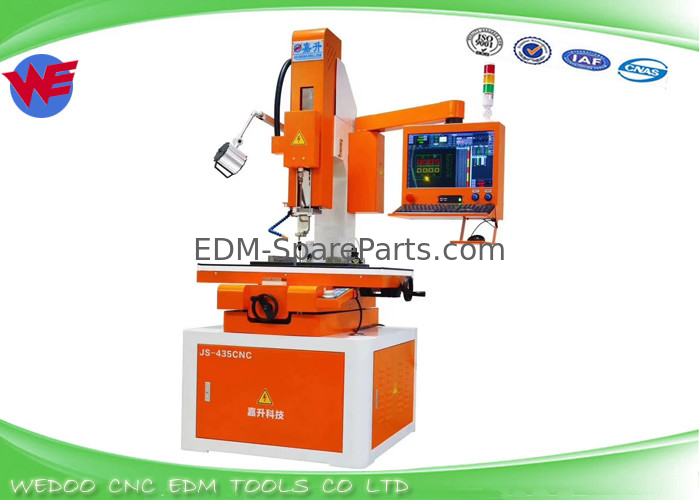

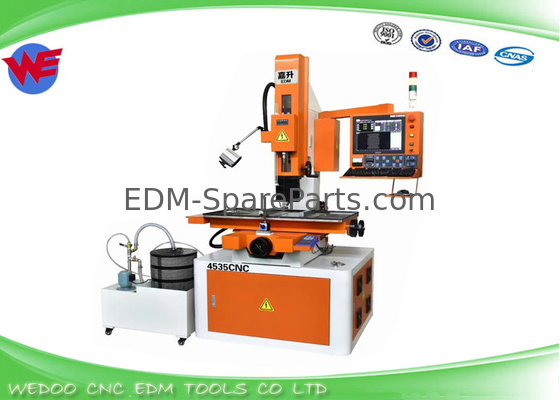

High Precistion Luxury Fine Hole Discharge Drilling Machines JS-4535CNC
1. For 0.15-3.0 mm Electrode Tubes.
2. Work Travel 450*350mm
3. 3 color avaible
4. High Precision Linear Guide Rall
5.Taiwan high pressure water pump
6. Marble workbench
Details:
| Machine Weight | 880kg | Maximum working load | 300kg |
| Table Travel | 450*350mm | Machine Dimensions (cm) | 120*110*210 |
| X-axis Travel | 450mm | Input Power (KAV) | 380V 3KVA |
| Y-axis Travel | 350mm | Max Processing Current (A) | 30 |
| Z1 axis servo up/down Travel | 400mm | Voltage Setting (grade) | 3 |
| Z2 axis auxiliary up/down Travel | 240mm | Discharge pulse width(segment) | 0-99 |
| Work Table sink area | 945*550mm | Rest frequency (segment) | 0-99 |
| Max Thickness Workpiece | 360mm | Encoder | Wanhao |
| Maching Hole size | 0.15-3.0mm | Operating System | Windows 7 |
| Z3 axis guide nozzle shaft up/down travel |
120mm | Parameter reading Method | Database |
Products show:
Our main products :
* EDM Drilling Machine
* EDM Spare parts : Wire Guide ,nozzles, roller ,power feed contact ,belt ,guide base , discharge cable…
* EDM Consumables: Brass wire , moly wire , JR3A ,Ion exchange resin ,kc-12
* EDM Water Filters
* EDM Drilling Parts : ceramic pipe guide ,ruby pipe guide , rubber seal , drill chuck
* EDM Copper / Brass tube : sighle hole ,double hole , multi hole electrode tube
* EDM Copper tappers
* High speed wire cutting EDM Parts :guide pully , pully assembly , bearing ....
* Jig tools , jig holders
We are your reliable supplier ,Just contact with us now!
