YSD-3545CNC Jiasheng EDM Discharge Drilling Machine 450*350mm Economical

YSD-3545CNC Jiasheng EDM Discharge Drilling Machine 450*350mm Economical
YSD-3545CNC Jiasheng EDM Discharge Drilling Machine 450*350mm Economical YSD-3545CNC Jiasheng EDM Discharge Drilling Machine 450*350mm Economical

Large Image :  YSD-3545CNC Jiasheng EDM Discharge Drilling Machine 450*350mm Economical

Product Details:
Place of Origin: China
Brand Name: Jiasheng
Model Number: YSD-3545 CNC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Packing in wooden case
Delivery Time: within 5-15 days after payment
Payment Terms: TT, Western Union,
Supply Ability: 1000 pcs per month
Contact Now

YSD-3545CNC Jiasheng EDM Discharge Drilling Machine 450*350mm Economical

Description
Name: EDM Discharge Drill Machine Items No.: YSD-3545 CNC
Material: Metal Work Travel: 450*350mm
Maching Hole Size: 0.15-3.0mm Max Working Load: 200kg
Color: Gray Packing: Wooden Case
Highlight:

450*350mm EDM Discharge drill Machine

,

Economical EDM Discharge drill Machine


Economical EDM Discharge Drilling Machines YSD-3545CNC

1. For 0.15-3.0 mm Electrode Tubes.

2. Work Travel 450*350mm

3. Marble workbench

4.  Both Manual and Automatic available






Details:



Machine Weight  660kg  Maximum working load  200kg
Table Travel  450*350mm Machine Dimensions (cm)  120*110*210
X-axis Travel  450mm Input Power (KAV)  380V 3KVA
Y-axis Travel   350mm Max Processing Current (A)  30
Z1 axis servo up/down Travel  430mm  Voltage Setting (grade)  3
Z2 axis auxiliary up/down Travel  320mm Discharge pulse width(segment)  0-200
 Work Table sink area 945*550mm Rest frequency (segment)  0-200
Max Thickness Workpiece 320mm Encoder   /
Maching Hole size  0.15-3.0mm  Operating System  Windows 7
Packing  Wooden case Parameter reading Method  Database








Products show:

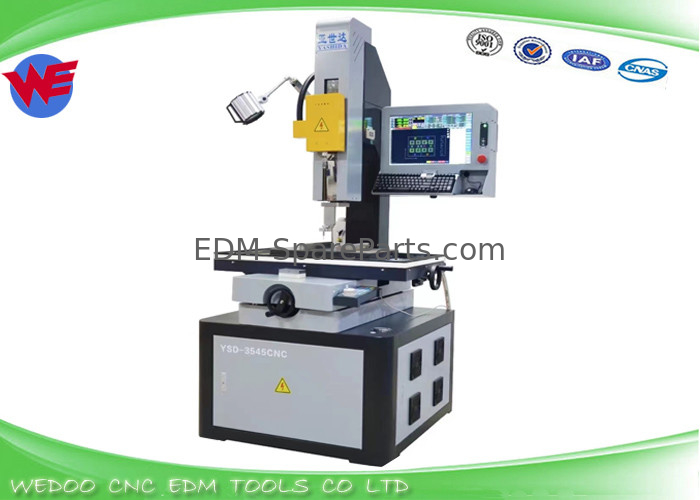

YSD-3545CNC Jiasheng EDM Discharge Drilling Machine 450*350mm Economical 0

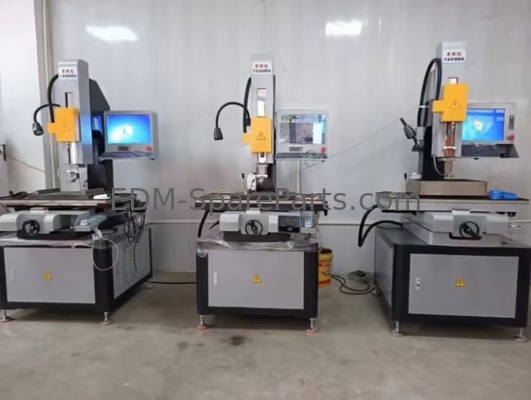

YSD-3545CNC Jiasheng EDM Discharge Drilling Machine 450*350mm Economical 1

Our main products :





*  EDM Drilling Machine


* EDM Spare parts : Wire Guide ,nozzles, roller ,power feed contact ,belt ,guide base , discharge cable…

* EDM Consumables: Brass wire , moly wire , JR3A ,Ion exchange resin ,kc-12

* EDM Water Filters

* EDM Drilling Parts : ceramic pipe guide ,ruby pipe guide , rubber seal , drill chuck

* EDM Copper / Brass tube : sighle hole ,double hole , multi hole electrode tube

* EDM Copper tappers

* High speed wire cutting EDM Parts :guide pully , pully assembly , bearing ....

* Jig tools , jig holders









We are your reliable supplier ,Just contact with us now!
