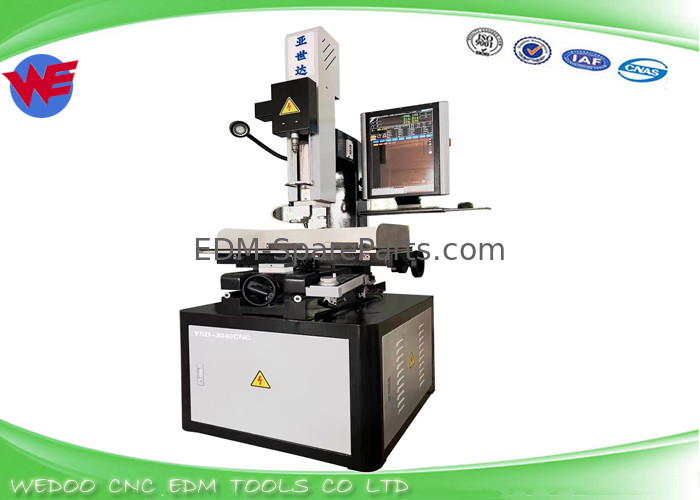

YSD-3040CNC Jiasheng EDM Discharge Drilling Machine 400*300mm CNC Model

YSD-3040CNC Jiasheng EDM Discharge Drilling Machine 400*300mm CNC Model
YSD-3040CNC Jiasheng EDM Discharge Drilling Machine 400*300mm CNC Model

Large Image :  YSD-3040CNC Jiasheng EDM Discharge Drilling Machine 400*300mm CNC Model

Product Details:
Place of Origin: China
Brand Name: Jiasheng
Model Number: YSD-3040CNC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Packing in wooden case
Delivery Time: within 5-15 days after payment
Payment Terms: TT, Western Union,
Supply Ability: 1000 pcs per month
Contact Now

YSD-3040CNC Jiasheng EDM Discharge Drilling Machine 400*300mm CNC Model

Description
Name: EDM Discharge Drill Machine Items No.: YSD-3040CNC
Material: Metal Work Travel: 400*300mm
Maching Hole Size: 0.15-3.0mm Max Working Load: 200kg
Color: Gray Packing: Wooden Case
Highlight:

CNC Model EDM Discharge Drilling Machine

,

CNC Model Drilling Machine

,

400*300mm EDM Discharge Drilling Machine

Small EDM Discharge Drilling Machines YSD-3040CNC

1. For 0.15-3.0 mm Electrode Tubes.

2. Work Travel 400*300mm

3.Small volume, machine size : 100*100*200cm

4.Professional manufaturer of fine hole discharge machining machines in Taiwan




Details:



Machine Weight  500kg  Maximum working load  200kg
Table Travel  400*3000mm Machine Dimensions (cm)  100*100*200
X-axis Travel  400mm Input Power (KAV)  380V 3KVA
Y-axis Travel   300mm Max Processing Current (A)  30
Z1 axis servo up/down Travel  400mm  Voltage Setting (grade)  3
Z2 axis auxiliary up/down Travel  330mm Discharge pulse width(segment)  0-200
 Work Table sink area  700*500mm Rest frequency (segment)  0-200
Max Thickness Workpiece 360mm Encoder   /
Maching Hole size  0.15-3.0mm  Operating System  /
Packing  Wooden case Parameter reading Method  /








Products show:


YSD-3040CNC Jiasheng EDM Discharge Drilling Machine 400*300mm CNC Model 0

YSD-3040CNC Jiasheng EDM Discharge Drilling Machine 400*300mm CNC Model 1

Our main products :





*  EDM Drilling Machine


* EDM Spare parts : Wire Guide ,nozzles, roller ,power feed contact ,belt ,guide base , discharge cable…

* EDM Consumables: Brass wire , moly wire , JR3A ,Ion exchange resin ,kc-12

* EDM Water Filters

* EDM Drilling Parts : ceramic pipe guide ,ruby pipe guide , rubber seal , drill chuck

* EDM Copper / Brass tube : sighle hole ,double hole , multi hole electrode tube

* EDM Copper tappers

* High speed wire cutting EDM Parts :guide pully , pully assembly , bearing ....

* Jig tools , jig holders









We are your reliable supplier ,Just contact with us now!
