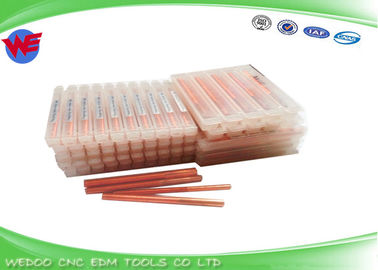

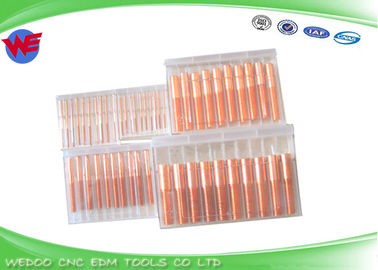

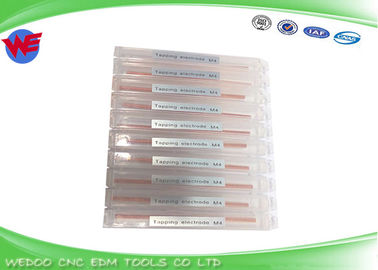

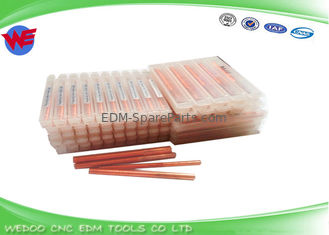

EDM Electrode / EDM Machine Parts M4 Copper Electrode Tapping 50 X 80 mmL Size

EDM Electrode / EDM  Machine Parts M4 Copper Electrode Tapping 50 X 80 mmL Size
EDM Electrode / EDM  Machine Parts M4 Copper Electrode Tapping 50 X 80 mmL Size EDM Electrode / EDM  Machine Parts M4 Copper Electrode Tapping 50 X 80 mmL Size EDM Electrode / EDM  Machine Parts M4 Copper Electrode Tapping 50 X 80 mmL Size

Large Image :  EDM Electrode / EDM Machine Parts M4 Copper Electrode Tapping 50 X 80 mmL Size

Product Details:
Place of Origin: China
Brand Name: WEDOO
Model Number: M4
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiation
Packaging Details: Packing in box
Delivery Time: within 1-5 days after payment
Payment Terms: TT, Western Union, Paypal
Supply Ability: 50000 pcs per month

EDM Electrode / EDM Machine Parts M4 Copper Electrode Tapping 50 X 80 mmL Size

Description
Name: Copper Electrode Tapping Items No.: M4
Material: Copper Total Length: 80mm
Tap Length: 50mm Under Quota Dia.: 2.9mm
Type: Without Hole Color: Red
High Light:

edm drill electrodes

,

copper electrode material



Copper Electrode Thread Tapppers Without Hole M4x0.7 For EDM Machine



Total length: 80mm ;Tap length:50mm

Difference length Tapping Electrodes is available, nomarl length is 80x50mm, 70x55mm ,

75x50mm,55x35mm.

Threading electrode range : M2 ; M2.5; M3; M4; M5; M6; M8; M10; M12; M14; M16; M18; M20; M22

International standard spec. Fine processing , high quality Tapping Electrode , be well received by oversea customers .

EDM Copper Electrode Tapping for EDM Spark Machkine and EDM Drilling Machine is available !

Large quantity in stock ,fast delivery !



EDM Electrode / EDM  Machine Parts M4 Copper Electrode Tapping 50 X 80 mmL Size 0EDM Electrode / EDM  Machine Parts M4 Copper Electrode Tapping 50 X 80 mmL Size 1



Copper Tapping Electrodes  (Cu) Tungsten CopperTapping Electrodes (CuW)
Tapping Total
L(mm)
Tap L
(mm)
Thin pitch Under quta D Tapping Total
L(mm)
Tap L
(mm)
Thin pitch Under quta D
M2x0.4 50 20     M2x0.4 50 20
M2.5x0.45 50 20     M2.5x0.45 50 20
M3x0.5 80 50   2.3 M3x0.5 68 48   2.3
M4x0.7 80 50   2.9 M4x0.7 68 48   2.9
M5x0.8 80 50 0.5 3.8 M5x0.8 68 48 0.5 3.8
M6x1.0 80 50 0.75 4.5 M6x1.0 68 48 0.75 4.5
M8x1.25 80 50 0.75-1 6 M8x1.25 68 48 0.75-1 6
M10x1.5 80 50 1 7.8 M10x1.5 68 48 1 7.8
M12x1.75 80 50 1-1.25-1.5 9.4 M12x1.75 68 48 1-1.25-1.5 9.4
M14x2 80 50 1-1.25-1.5 11.1 M14x2 68 48 1-1.25-1.5 11.1
M16x2 80 50 1.5 13.1 M16x2 68 48 1.5 13.1
M18x2.5 80 50   14.4 M18x2.5 68 48   14.4





Tapping Electrodes M2-M20



* Copper tapper without hole

* Copper Tapper with hole

* Tungsten Copper Tapper without hole

* Tungsten Copper Tapper with hole



For special size ,customized items is available to made!





Materials details



CuW50 and CuW55 have the lowest Tungsten contents. They are both good switching and contact materials for oil filled devices. CuW55 is also used for arcing contacts in oil circuit breakers and arcing edges of selectors and switchblades in transformer tap changers.


CuW65 and CuW70 are used as contact materials in severe arcing applications including gas, oil and some air circuit breakers. They are also used for arcing edges on selectors and reversing switch blades.


CuW75 and CuW80 are used as contact materials under extreme arcing conditions. Applications include arcing contacts in gas and oil circuit breakers, contactors and transformer tap changers, arcing plates and arc runners in power switching equipment.

CuW85 and CuW90 have the highest Tungsten content. They are used as contact materials where resistance to contact welding, sticking and arc erosion are critical. They also provide satisfactory heat and current interruption capabilities. Typical applications are power vacuum switches and high power spark gap electrodes, etc



If you need Tapping Electrode with Tungsten copper ( CuW ) ,or Copper (Cu) , without hole / with hole , in order to choice

the right one products, Please keep in touch with us about your detail demands.
