Product Details:
|
| Name: | EDM Copper Threading Tapper | Items No.: | M10 |
|---|---|---|---|
| Material: | Copper | Total Length: | 80mm |
| Tap Length: | 50mm | Under Quota Dia.: | 7.8mm |
| Thin PitchDimensions: | Customer's Demands | Color: | Red |
| High Light: | edm drill electrodes,copper tungsten electrodes,CNC EDM Machine Threading Electrodes |
||

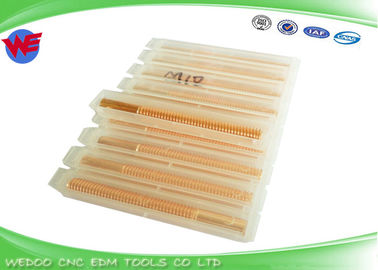

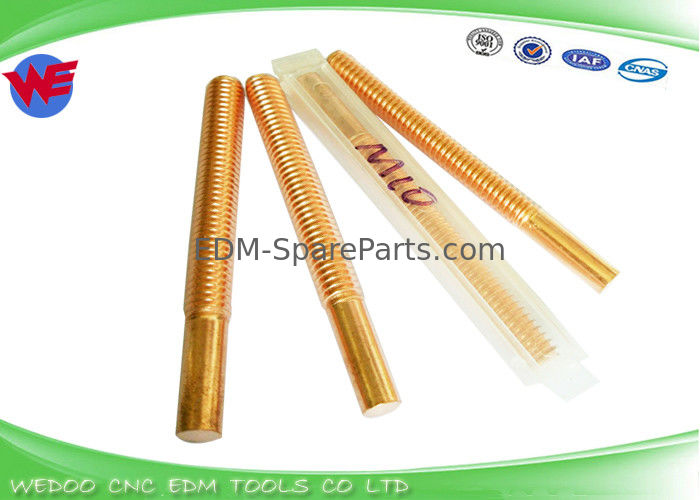

M10 EDM Threading Electrodes For CNC EDM Machine
Total length: 80mm ;Tap length:50mm
Difference length Tapping Electrodes is available, nomarl length is 80x50mm, 70x55mm ,
75x50mm,55x35mm.
International standard spec. Fine processing , high quality Tapping Electrode , be well received by oversea customers .
EDM Copper Electrode Tapping for EDM electronics,aerospace,machinery.
Large quantity in stock ,fast delivery !
Tapping Electrodes M2-M20
* Copper tapper without hole
* Copper Tapper with hole
* Tungsten Copper Tapper without hole
* Tungsten Copper Tapper with hole
For special size ,customized items is available to made!
| EDM Copper Tapping Electrodes | CU | |||
| Tapping | Total L(mm) |
Tap L (mm) |
Thin pitch | Under quta D |
| M2x0.4 | 50 | 20 | ||
| M2.5x0.45 | 50 | 20 | ||
| M3x0.5 | 80 | 50 | 2.3 | |
| M4x0.7 | 80 | 50 | 2.9 | |
| M5x0.8 | 80 | 50 | 0.5 | 3.8 |
| M6x1.0 | 80 | 50 | 0.75 | 4.5 |
| M8x1.25 | 80 | 50 | 0.75-1 | 6 |
| M10x1.5 | 80 | 50 | 1 | 7.8 |
| M12x1.75 | 80 | 50 | 1-1.25-1.5 | 9.4 |
| M14x2 | 80 | 50 | 1-1.25-1.5 | 11.1 |
| M16x2 | 80 | 50 | 1.5 | 13.1 |
| M18x2.5 | 80 | 50 | 14.4 | |
Our main products :
* EDM Spare parts : Wire Guide ,nozzles, roller ,power feed contact ,belt ,guide base , discharge cable…
* EDM Consumables: Brass wire , moly wire , JR3A ,Ion exchange resin ,kc-12
* EDM Water Filters
* EDM Drilling Parts : ceramic pipe guide ,ruby pipe guide , rubber seal , drill chuck
* EDM Copper / Brass tube : sighle hole ,double hole , multi hole electrode tube
* EDM Copper tappers
* High speed wire cutting EDM Parts :guide pully , pully assembly , bearing ....
How to shipping the packages?
| NO. | Ways fo shipment | Feature | Delivery time | Our suggest |
| 1 | Express (FedEx,DHL,TNT , EMS etc.) | Expensive, but fast, delivery to door |
3-10 days | small package 0- 100kg |
| 2 | Shipping by Sea | Low cost ,take a long time, delivery to sea port. |
more than 15 days Base on the distance |
60kg-200kg |
| 3 | Shipping by Air | Mid-priced,fast , delivery to air port |
5-10 days | More than 100kg |
| 4 | EXW terms ( Arrange the shipment by yourself) |
Pick up the material from our office by yourself agency |
It depends | It depens |
We are your reliable supplier ,Just contact with us now.
Contact Person: Tracy Lue
