M5 Tungsten Copper Threading Electrodes / Copper Electrode Without Hole

M5 Tungsten Copper Threading Electrodes / Copper Electrode Without Hole

    • M5 Tungsten Copper Threading Electrodes / Copper Electrode Without Hole
    • M5 Tungsten Copper Threading Electrodes / Copper Electrode Without Hole
  • M5 Tungsten Copper Threading Electrodes / Copper Electrode Without Hole

    Product Details:

    Place of Origin: China
    Brand Name: WEDOO
    Model Number: M5

    Payment & Shipping Terms:

    Minimum Order Quantity: 20 pcs
    Price: Negotiation
    Packaging Details: Packing in box
    Delivery Time: within 1-5 days after payment
    Payment Terms: TT, Western Union, Paypal
    Supply Ability: 50000 pcs per month
    Contact Now
    Detailed Product Description
    Name: Tungsten Copper EDM Threading Electrode Material: Tungsten Copper
    Total Length: 68 Mm Tap Length: 48mm
    Under Quota Dia.: 3.8mm Thin Pitch: 0.5mm
    Shape: Without Hole



    M5 Tungsten Copper EDM Threading Electodes Without Hole



    Total length: 68mm ;Tap length:48mm

    Difference length Tapping Electrodes is available to customized .



    Without Hole Threading electrode range :  M2-M12


    International standard spec. Fine processing , high quality Tapping Electrode , be well received by oversea customers .



    EDM Copper Electrode Tapping for EDM Spark Machkine and EDM Drilling Machine is available !

    Large quantity in stock ,fast delivery !



    Products show:

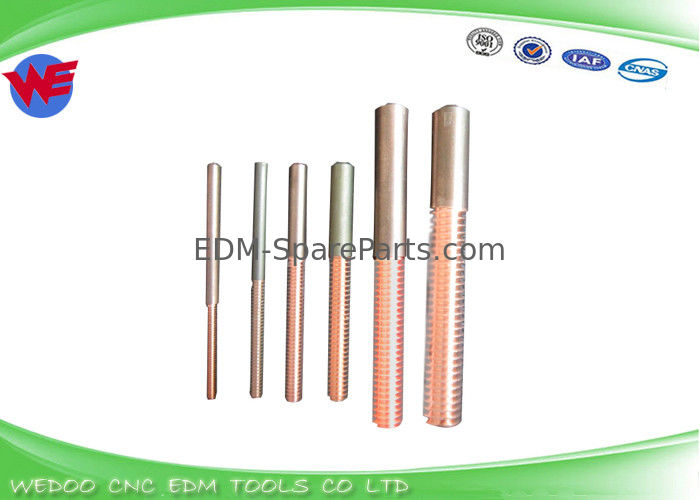

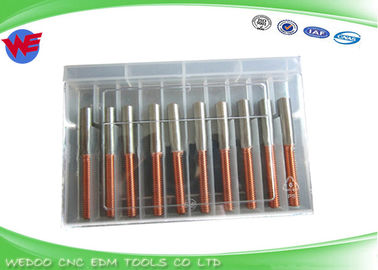

    M5 Tungsten Copper Threading Electrodes / Copper Electrode Without Hole





    Tapping Electrodes M2-M20



    * Copper tapper without hole

    * Copper Tapper with hole

    * Tungsten Copper Tapper without hole

    * Tungsten Copper Tapper with hole



    For special size ,customized items is available to made!





    Properties of Tungsten Copper EDM Threading Electrodes:



    Tapping Total
    L(mm)
    Tap L
    (mm)
    Thin pitch Under quta D
    M2x0.4 50 20
    M2.5x0.45 50 20
    M3x0.5 68 48   2.3
    M4x0.7 68 48   2.9
    M5x0.8 68 48 0.5 3.8
    M6x1.0 68 48 0.75 4.5
    M8x1.25 68 48 0.75-1 6
    M10x1.5 68 48 1 7.8
    M12x1.75 68 48 1-1.25-1.5 9.4





    Materials details


    CuW65 and CuW70 are used as contact materials in severe arcing applications including gas, oil and some air circuit breakers. They are also used for arcing edges on selectors and reversing switch blades.


    CuW75 and CuW80 are used as contact materials under extreme arcing conditions. Applications include arcing contacts in gas and oil circuit breakers, contactors and transformer tap changers, arcing plates and arc runners in power switching equipment.



    If you need Tapping Electrode with Tungsten copper ( CuW ) ,or Copper (Cu) , without hole / with hole , in order to choice

    the right one products, Please keep in touch with us about your detail demands.
